Negative air vacuum
solution for the cleaning
of HVAC systems
THE ULTIMATE SOLUTION IN NEGATIVE SUCTION FOR DUCT CLEANING
The negative pressure generated in the air ducts captures any particle inside them.
The different stages of filtering will retain all these particles, decanting them by their thickness in the different modules.

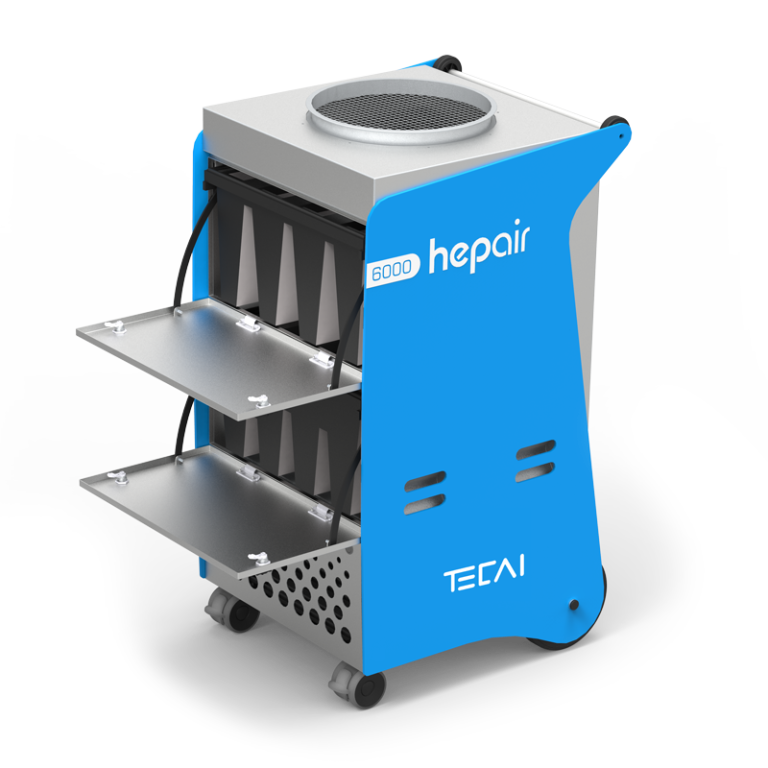

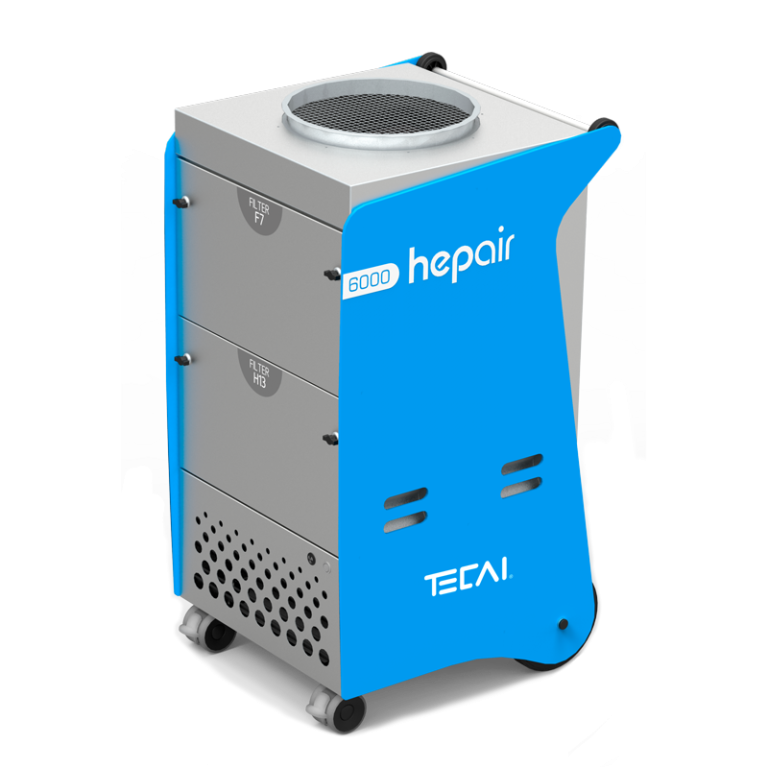

The Hepair 6000 is a single-phase air duct vacuum that can be plug in to any electric mains regardless of the voltage.
Speed, versatility and power in a single unit.
- Maximum airflow of the vacuum is 6200 m3/h

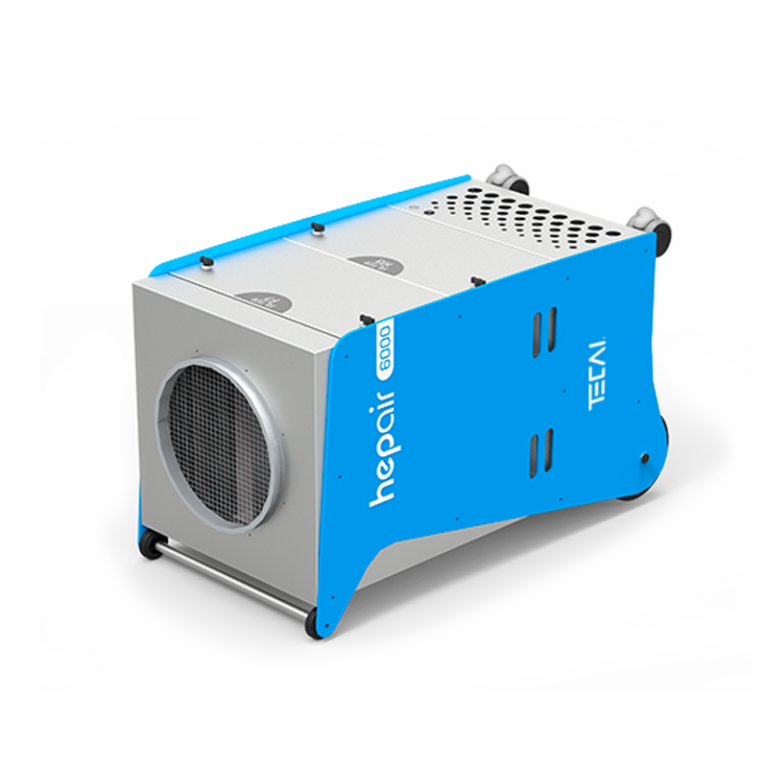

- It can be transported both horizontally and vertically
- Acoustic filter clogging indicator
This equipment works with a turbine that doesn’t need maintenance, since it does not work with brushes as conventional motors usually work.
TECHNICAL SHEET
| Supply voltage Electric consumption | 230 V / 50-60 Hz 110 V / 50-60 Hz |
| Max. flow rate | 6200 m3/h / 3200 cfm |
| Flow rate with filter F7 | 5350 m3/h / 2000 cfm |
| Flow rate with filter H13 | 4800 m3/h / 1800 cfm |
| Max Depression | 1300 Pa / 0,2 psi |
| Filtration level 1 | F7 |
| Filtration level 2 | H13 |
| Degree of separation | >99% |
| Engine power | 1250 W |
| Current consumption | 5,6 A // 11,2 A |
| Sound level | 80 dB |
| Dimensions (L x W x H) | 670 x 750 x 1300 mm 26,4 x 29,5 x 51,2 inch |
| Weight without filters Weight with filters | 80 kg / 176 lb 100 kg / 220 lb |
The ultimate negative air vacuum solution for the cleaning of HVAC systems.
Commercial and industrial buildings, offices, government agencies, hospitals, schools and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.

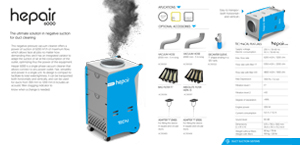

CATALOGUE
OPTIONAL ACCESORIES
VACUUM HOSE
Ø300 mm – 16,4 ft long
VACUUM HOSE
Ø400 mm – 16,4 ft long

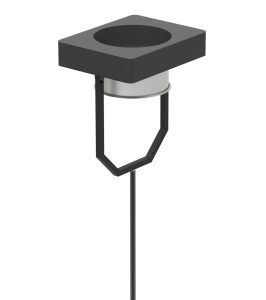

ADAPTER “Y” Ø300
For fitting the sleeve in square
and circular ducts.

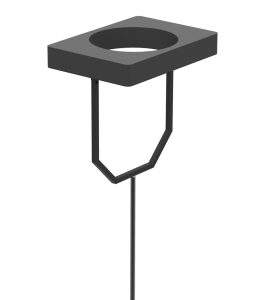

ADAPTER “Y” Ø400
and circular ducts.

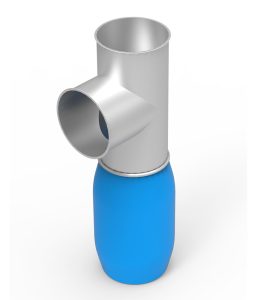

DECANTER SLEEVE
T» shape ending in a 120 l tank.
