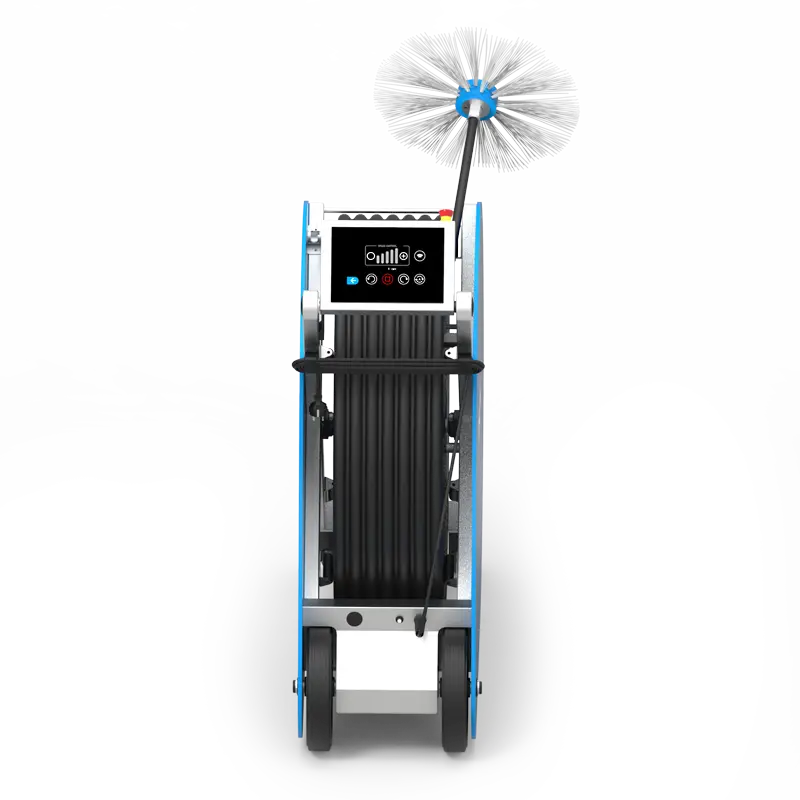

Electric Air Duct
Cleaning Equipment
for ducts up to
24 inches.
66 ft
THE PERFECT FIT FOR THE CLEANING OF MEDIUM-SIZED DUCTS

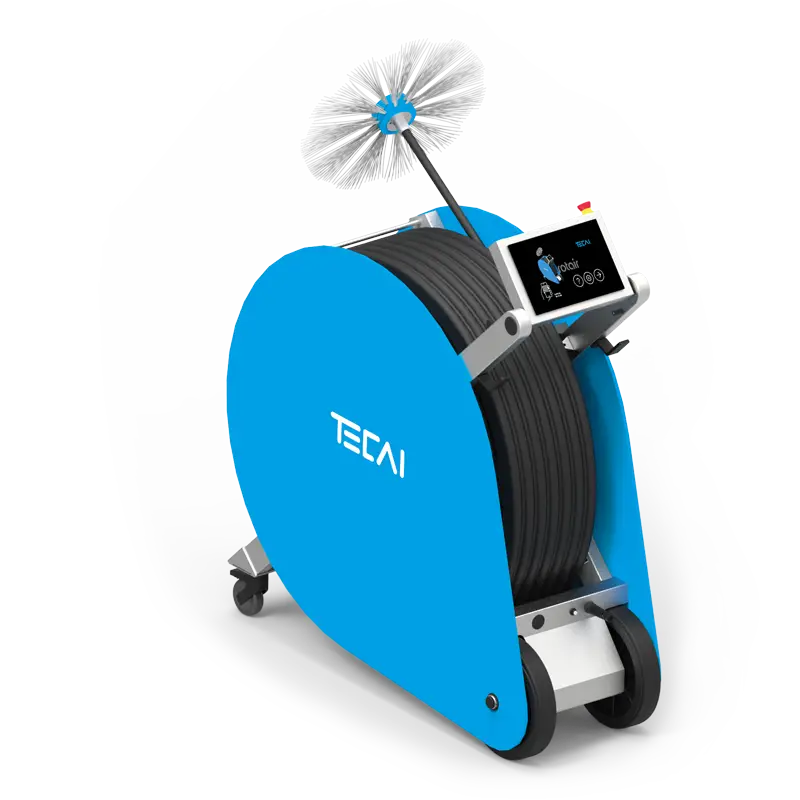

Rotair is the ideal solution for cleaning ducts up to 24 inches in diameter. An electric brushing system,
which incorporates PROAXIS technology automatically minimising the possibility of shaft breakage during use.

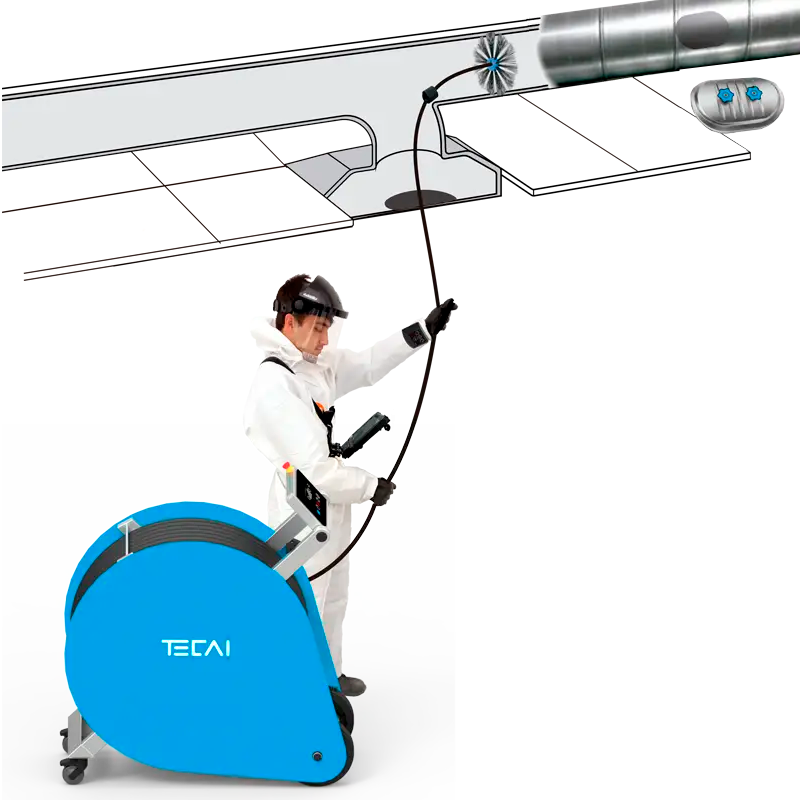

The wrist remote control allows a single operator to perform the cleaning of the air duct
It incorporates the function of automating the rotation of the brush. This feature shortens the time required for the cleaning.
- Rotair is the perfect equipment for cleaning medium sized air ducts.
- It offers the ability to view and record inside the duct at the same time it is being cleaned.
- The optional remote control allows cleaning to be performed by a single operator by being able to control the hose, and equipment functions, from the same location.
- It incorporates the function of automating the direction of brush rotation. This function shortens the time required for cleaning.
TECHNICAL SHEET
| Electric supply | 220V / 50Hz // 110V / 60Hz |
| Engine power | 370 W |
| Engine rotation speed | 0 – 3000 rpm |
| Engine operating speed | 0 – 500 rpm |
| Noise level | Less than 70 dB |
| Direction of rotation | Right / Left |
| Control system | Electric |
| Control panel | HMI screen |
| Dimensions (H x W x D) | 1002 x 365,5 x 967 mm / / 39,4 x 14,3 x 38 inches |
| Weight | 60 kg // 132 lb |
| Hose length | 20 m // 66 ft |
| Structural material | Stainless steel and HDPE |
Electric duct cleaning equipment for ducts up to 24 inches.
Commercial and industrial buildings, offices, government agencies, hospitals, schools and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.

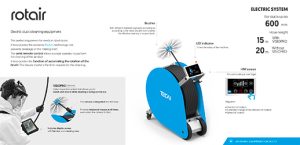

CATALOGUE
OPTIONAL ACCESORIES

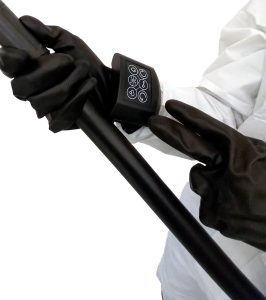

REMOTE CONTROL

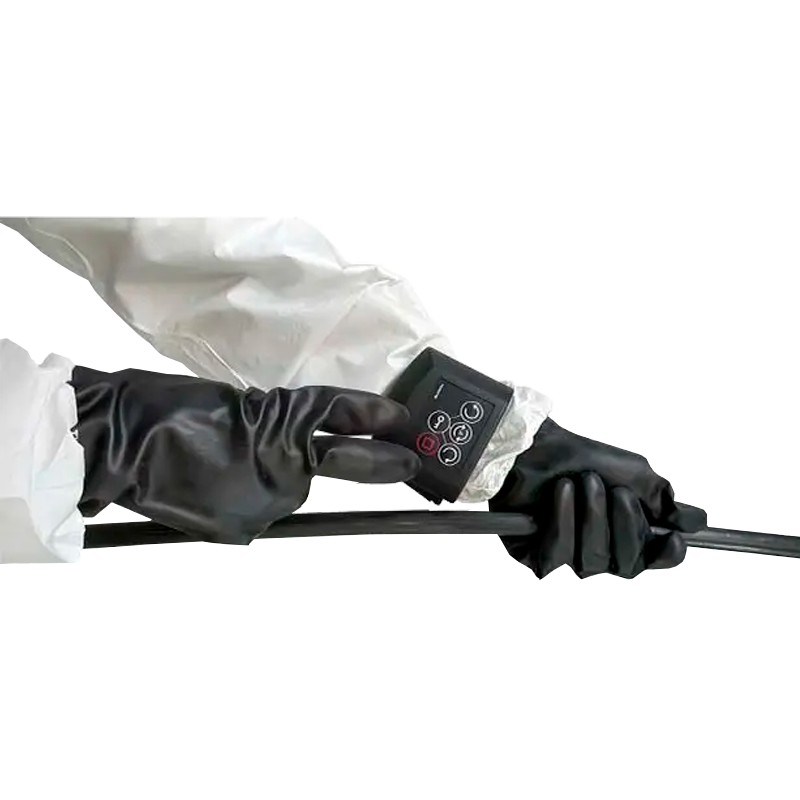

The wrist remote control allows a single operator to perform the cleaning of the air duct.BRUSH CENTERING DEVICE

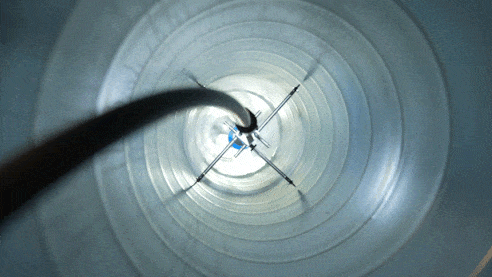

Allows the brush to be centered in the duct, thus exerting equal pressure on the entire diameter of the duct and avoiding lurching. The wheels offer a better sliding.
VISIOPRO

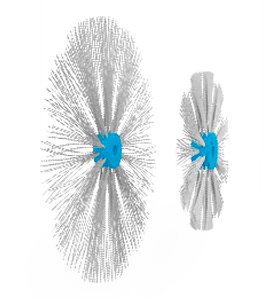

Visualizes in real time the inside of the duct. Allows the capture of high definition videos and photos during cleaning.TECAI duct cleaning brushes
Discover the air duct brushes for your Tecai duct cleaning equipment.
DUO SQUARE for the cleaning of square ducts.
