Equipment for
HVAC cleaning ducts
for ducts of
1.9 to 15.7 inches
33 ft

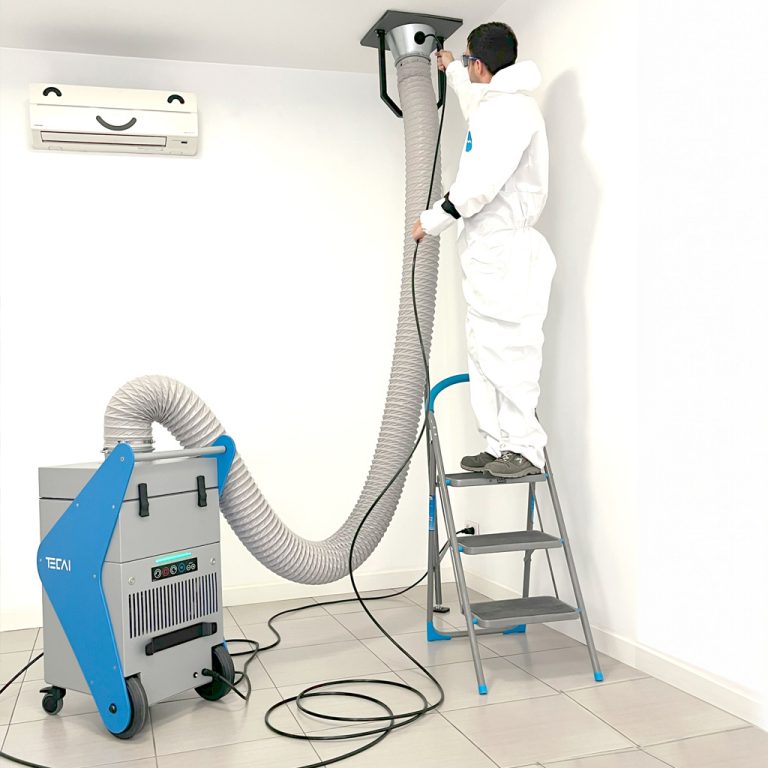

THE PERFECT FIT FOR RESIDENTIAL HVAC CLEANING DUCTS
Compact equipment that integrates a cleaning and suction system in the same machine.

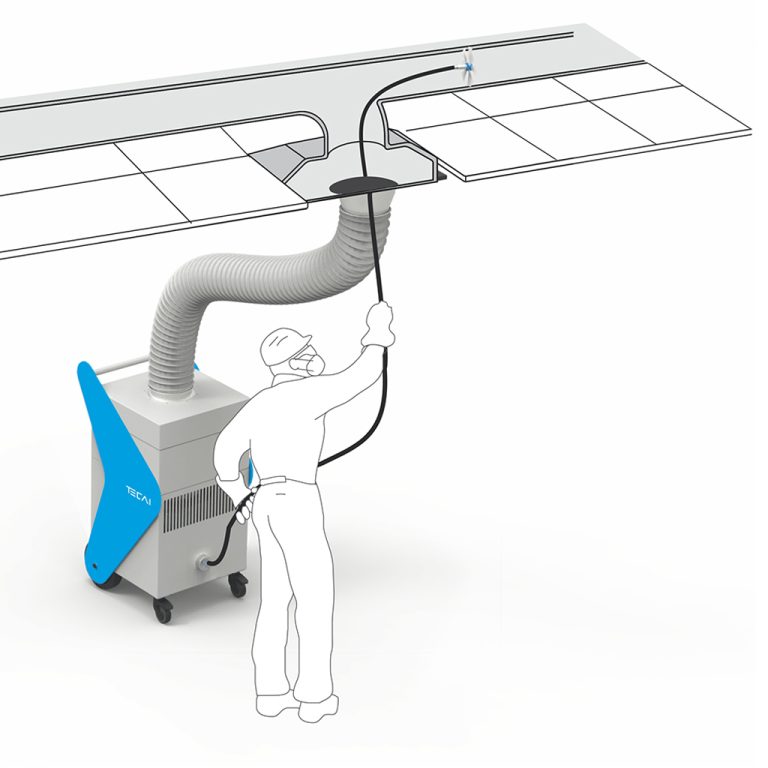

Cleaning is carried out by means of
a mechanical brush with a flexible rotating shaft that allows it to clean ducts
with a reduced cross-section such as HVAC.
With the optional shaft for 50 to 400 mm ducts, other residential, industrial or commercial ventilation and/or air conditioning systems
can be cleaned.

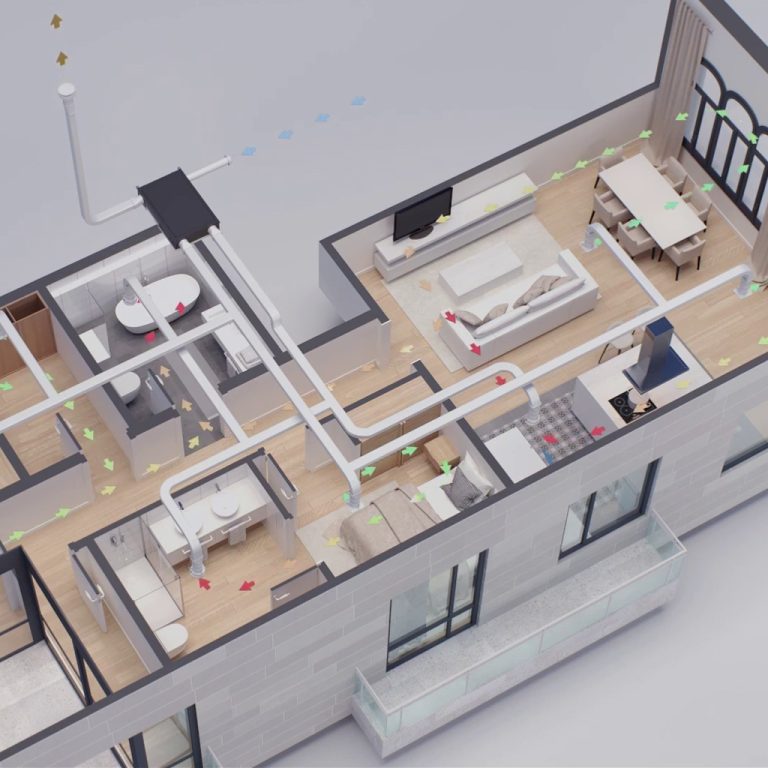

- All in one: Venet integrates cleaning and suction in one compact unit, ideal for mechanical ventilation ducts (MVDC).
- Adaptable and compact: Perfect for residences, boats or trains. Its small size makes it versatile and convenient.
- Total flexibility: Mechanical brush with flexible shaft for ducts from 1.9 to 15.7 inches. Additional shaft option for 11.8 to 15.7 inches ducts.
- Powerful HEPA suction: Complies with cleaning regulations. Double filtration for efficient suction of debris.
- Outstanding efficiency: Cleaning power in a compact size. Ideal for hard-to-reach places and VMC systems with closed elbows.
- Specialised brushes: Designed to fit all shapes and sizes of ductwork, without having to change brushes.
TECHNICAL SHEET
| Maximum power equipment | 230V-110V / 50 – 60Hz 0,7 kW // 0,94 HP |
| Maximum power consumption | 3 A |
| Suction power | 0,27 kW |
| Maximum suction flow rate | 1600 m3/h |
| Maximum depression | 600 Pa |
| Operating point | 1000m3/h a 450 Pa |
| Filtration level 1 | F7 |
| Filtration level 2 | H13 |
| Degree of separation | Ø160 mm // 3 m / 9,84 ft |
| Aspiration hose | >99 % |
| Brushing power | 0,25kW |
| Brushing speed | Adjustable 0 – 1000 rpm |
| Direction of rotation | Right / Left |
| Control system | Electric |
| Control panel | Membrane keyboard |
| Brushing shaft | Ø10 mm // 10 m / 32,8 ft |
| Noise level | 72 dB |
| Main materials | Painted steel and HDPE |
| Dimensions: (L x W x H) | 530 x 481 x 926 mm 20,87 x 18,94 x 36,46 inches |
| Weight | 50 kg // 110,2 lb |
Electric duct cleaning equipment for ducts of 50 to 400 mm.
Residential HVAC air duct cleaning is fundamental to maintaining good health, improving energy bills and enjoying comfort in the home.
The National Air Duct Cleaners Association (NADCA) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.
INCLUDED ACCESORIES
VACUUM HOSE
Ø6.2 inches, 10,9 ft
of length

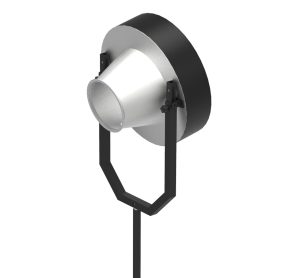

ADAPTER HOSE
DUCT
Ø6.2 inches
REMOTE CONTROL

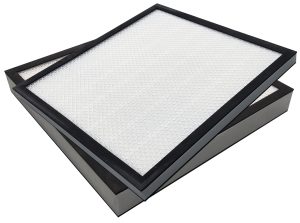

F7 AND
H13 FILTERS
15,7 X 15,7 X 0,8 inches. 1 unit.
15,7 X 15,7 X 1,8 inches. 1 unit.
FLEXIBLE
SHAFT
WITH BAG
32,8 ft. Ø1.9-9.8 mm
NYLON BRUSH
Ø9.8 inches
OPTIONAL ACCESORIES
PACK FINE
NYLON
BRUSHES
Ø11.8 | 13.7 | 15.7 mm

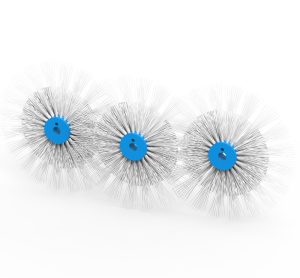

PACK NYLON
SQUARE DUCT
BRUSHES
Ø11.8 | 13.7 | 15.7 mm
